CSS Unit, Size, Spacing and Box Model

Absolute units#

Unit	Description
px	pixel (1px = 1/96th of 1in)
pt	point (1pt = 1/72 of 1in)
pc	pica (1pc = 12 pt)
cm	centimeter
mm	millimeter
in	inch (1in = 96px = 2.54cm)

Relative units#

Unit	Description
rem	relative to font-size of the root element
em	relative to font-size of the parent element
%	relative to parent element
vw	relative to 1% of the width of the viewport
vh	relative to 1% of the height of the viewport
vmin	relative to 1% of viewport's smaller dimension
vmax	relative to 1% of viewport's larger dimension
ex	relative to x-height of the current font
ch	relative to width of the "0" (zero)

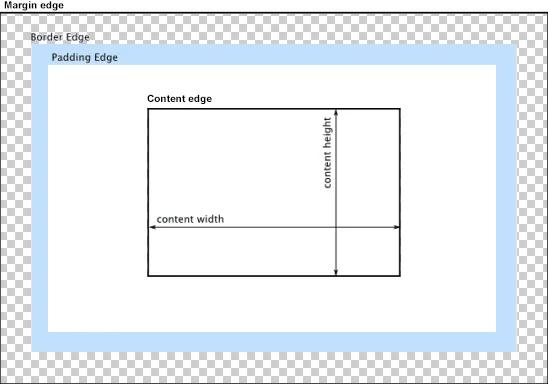

Box model#

• Content area
• Padding area
• Border area
• Margin area

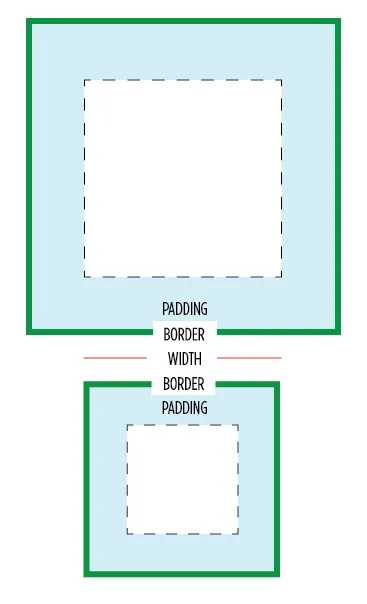

Box sizing#

Suppose:
width = 100px, padding = 10px, border = 10px

• content-box (default)
  content size = width(100), total size = content(100) + padding(10) + border(10) = 120px
• border-box
  content size = width(100) - padding(10) - border(10) = 80px, total size = width = 100px

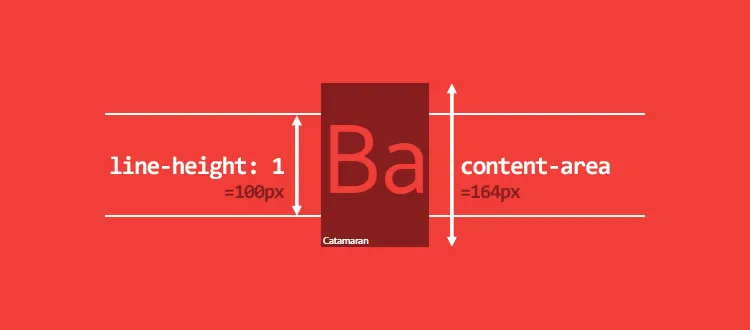

Line height#

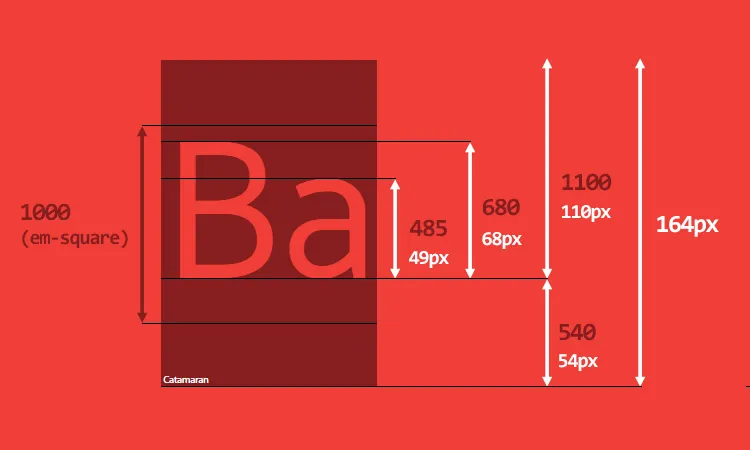

The content-area is not always the same as the font-size, it depends on the font metrics.

IMPORTANT: we should pay attention to the line height when we use unitless (relative) value.

The line height with unitless value are font-size relative, it may cause virtual-area smaller than the content-area.
